Home Medical Equipments Double Head with Camera INSPITAL LD20.52
Triple Head Operating Light INSPITAL LD10.03
Back to products
Surgical Suction Unit SU60.10

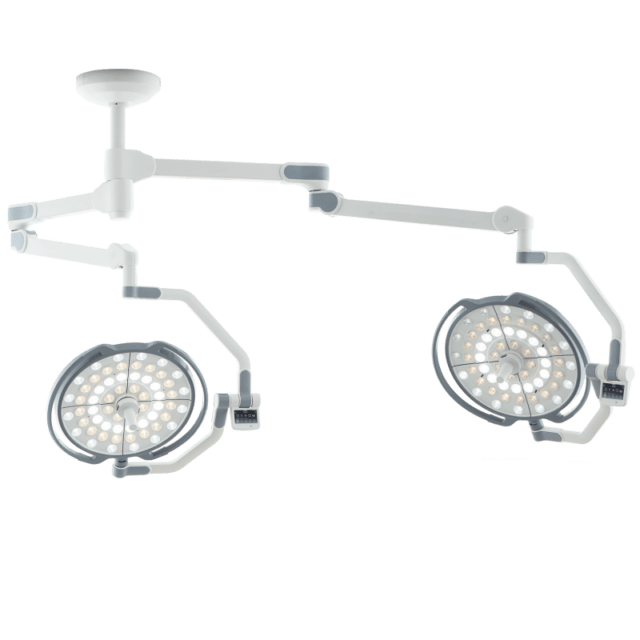

Double Head with Camera INSPITAL LD20.52

Technical Features
Max. Illumination power, in 1 m160.000 Lux
Diameter of lightheadØ670 mm
Color temperature3000 K – 5000 K
Color rendering index, Ra CRI96%
Dimming Range% 1 – 100
Light Field Diameter d1024 – 36 cm / 9.5”- 14.2”
Light Field Diameter d5013 – 28 cm / 5.1” – 11”
Number of LED modules60
Lifetime of LED>60.000 h
Degree of turbulence (standard value 37.5% max.)29%
Depth of the volume of light L1 + L2 at 20%130 cm / 51.2”
Depth of the volume of light L1 + L2 at 60%76 cm / 30”
Camera1080p Full HD Camera
Irradiance at nominal illuminance200 W/m2
Additional optionsTouch Screen Pro Control Unit, Camera, Monitor, Battery Back Up
Category: Medical Equipments
Share:
  • Description
  • Additional information
  • Shipping & Delivery
Description

The high-resolution camera provides good quality images which can be recorded and used for educational purposes. The light intensity of 160,000 Lux provides a clear view of the surgical area and does not cause eye fatigue. The AIM feature minimizes shadow formation by turning off the light on the blocked quarter of the operating light. When using this feature, the light intensity does not decrease and the power of the blocked area is transferred to the other quarters.

LD20.24 is designed for operating rooms where cameras are needed. LD20.24 is a double-headed operating lamp, equipped with an HD camera.



  • Adjusting the light temperature between 3000 K and 5000 K ensures that colors of tissues in the surgical can be seen maximally accurate.
  • Laser Positioning feature provides fast and effective light intensity adjustment and focusing in the operation area.
  • The lamp head is made of chemical resistant, durable ABS material.
  • Each LED module can be removed and replaced with a new one individually. Lifetime of LED modules is 60.000 hours. Which means that during this period, approximately 15,000 coronary artery bypass surgery (one of the longest surgeries), can be performed.
Additional information
Product Type

Operating Lights

Shipping & Delivery

Related products

GET AN OFFER
Quick view

Electrosurgery NS01.60 160W INSPITAL NS01.60

Medical Equipments
GET AN OFFER
Quick view

Central Suction Trolley INSPITAL AT20.75T

Medical Equipments
GET AN OFFER
Quick view

Electrosurgery NS04-00 400W INSPITAL NS04.00

Medical Equipments
GET AN OFFER
Quick view

Orthopedic Traction Set INSPITAL OT60.90

Medical Equipments
GET AN OFFER
Quick view

Mobile Imaging Table INSPITAL OT80.30

Medical Equipments
GET AN OFFER
Quick view

Mobile Operating Light INSPITAL LD05.06

Medical Equipments
GET AN OFFER
Quick view

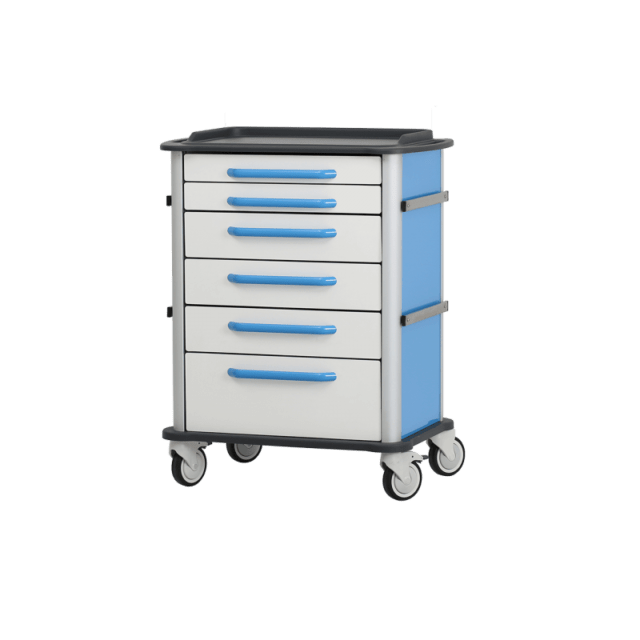

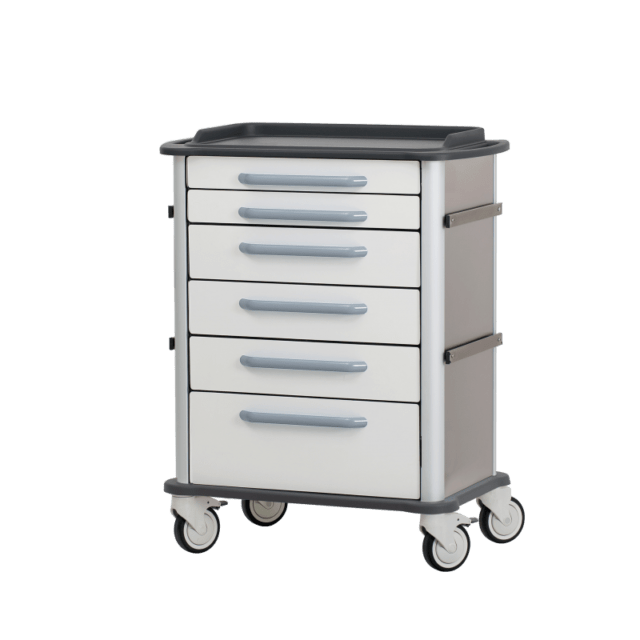

Hospital Cart INSPITAL AB20.60
